HDMI™ Cables
HDMI A 8K Certified Cable 5.0m - PF331A
HDMI 2.1 ULTRA certified 5.0m cable: 8K@60Hz, 48Gbps, 176-wire shielding, nylon braided.
Overview
The PF331A (5.0m) is an HDMI 2.1 Association ULTRA-certified cable supporting 4K@120Hz and 8K@60Hz resolution at 48Gbps bandwidth. It uses nickel-plated HDMI connectors and a PP-yarn braided jacket.
Its shielding layer uses 176 aluminium wires as an isolation layer for up to 95% coverage, meeting the HDMI Association's EMI -6dB standard. An OFC high-purity oxygen-free copper conductor and SR reinforcement add durability over the longer 5-meter run.
The box contains one cable.
Specifications
| Spec | Value |
|---|---|
| Model / Code | PF331A-0500 |
| Cable Material | Nylon weaving |
| Color | Black |
| Shell Material | Aluminium shell |
| Connector | HDMI |
| Length | 5.0 m |

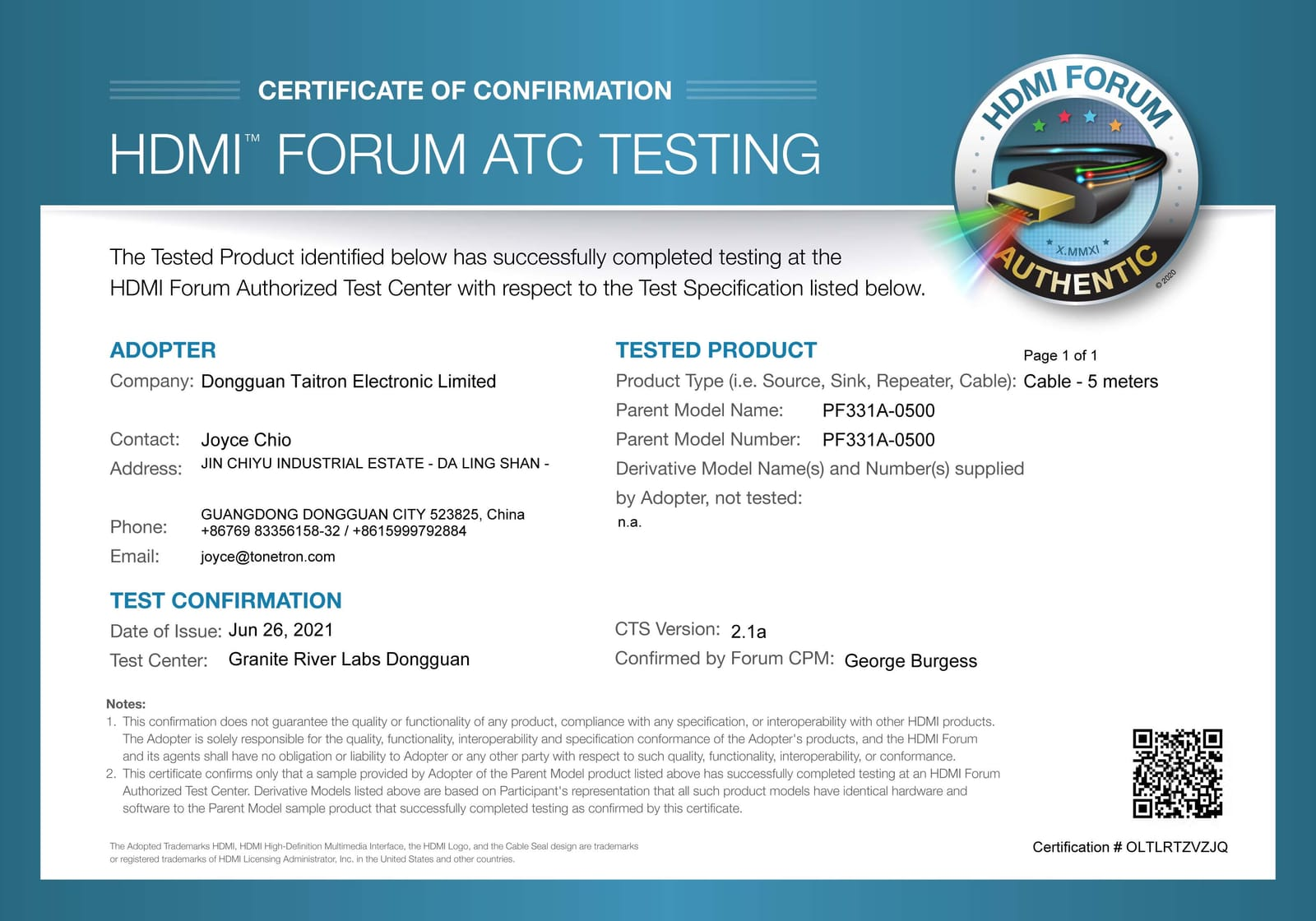

| Standard | HDMI 2.1 (ULTRA Certified) |
| Resolution | 8K@60Hz / 4K@120Hz |
| Bandwidth | 48Gbps |
| Shielding | 176 aluminium wires, 95% coverage, EMI -6dB |
Frequently Asked Questions
- How long is the PF331A 5.0m cable?
- 5.0 meters.
- What resolution does the 5.0m PF331A support?
- Up to 8K@60Hz and 4K@120Hz at 48Gbps.
- Is the 5.0m PF331A certified?
- Yes, it is HDMI 2.1 ULTRA-certified.
- How many shielding wires does the 5.0m PF331A use?
- 176 aluminium wires giving up to 95% coverage, meeting EMI -6dB.
