HDMI™ Cables

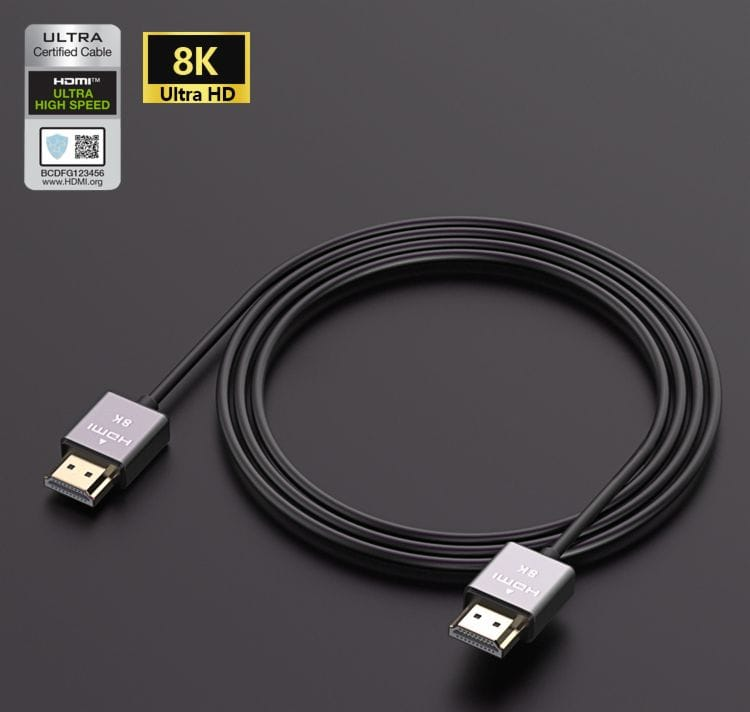

HDMI A 8K/60 Certified Cable 1.5m - PF331S
Ultra-slim OD3.2 HDMI 2.1 certified 1.5m cable: 8K@60Hz 4:4:4, 48Gbps, HDR, 24K gold connectors, 36AWG.
Overview
The PF331S is an ultra-slim OD3.2 HDMI 2.1 Association-certified cable using twisted-pair technology and 24K gold-plated HDMI connectors. It supports 4K@120Hz and 8K@60Hz 4:4:4 resolution at 48Gbps bandwidth, with HDR support.
The aluminium-alloy shell and TPE jacket house an OFC high-purity oxygen-free copper conductor. The shielding layer uses 176 tinned copper wires for up to 95% coverage, meeting the HDMI Association's EMI -6dB standard.
A slim 36AWG, OD3.2 design keeps the cable flexible. The box contains one cable.
Specifications
| Spec | Value |
|---|---|
| Model / Code | PF331S-0150 |
| Cable Material | TPE |
| Color | Black |
| Shell Material | Aluminium shell |
| Connector | HDMI |
| Length | 1.5 m |
| Standard | HDMI 2.1 (Certified) |
| Resolution | 8K@60Hz 4:4:4 / 4K@120Hz, HDR |
| Bandwidth | 48Gbps |
| Connector Plating | 24K Gold Plated |
| Wire Gauge | 36AWG |
| Outer Diameter | OD 3.2 |
| Shielding | 176 tinned copper wires, 95% coverage, EMI -6dB |
Frequently Asked Questions
- What makes the PF331S different?
- It is an ultra-slim OD3.2, 36AWG HDMI 2.1 cable with twisted-pair technology and 24K gold-plated connectors.
- Does the PF331S support HDR?
- Yes, with 8K@60Hz 4:4:4 and 48Gbps bandwidth.
- How long is the PF331S cable?
- 1.5 meters.
- How is the PF331S shielded?
- With 176 tinned copper wires giving up to 95% coverage, meeting EMI -6dB.
